Part 1 of this three part series covered all the SAP NW Portal analytics products on the market. Part 2 went into the details of each specific tool in relation to important criteria that one should consider before purchasing or implementing into a company’s SAP Portal. In part 3, Baris Oztop, a Computer Science Graduate student at Munich’s Technical University (TUM) will conclude his in-depth research:
Part 1: Overview of SAP Portal Analytics Products
Part 2: SAP Portal Analytics Product Comparisons
Part 3: Conclusion to SAP Portal Analytics Overview Research:
(The full pdf version of “A Complete Overview of SAP Portal Analytics Tools” coming soon.)
Google Analytics is a free tool; however a correct implementation and analyzing reports in case of erroneous data collection need keeping additional staff in your company for analytics. Simply adding Google’s tag on your portal won’t result readable reports unless you provide the necessary values e.g. correct navigation path names of your portal to Google. Therefore, using Google Analytics might seem a cheap solution at first, but it might be laborious task if you don’t have a simple web site.
Portal integration of Webtrends needs a project purchase.
Portal integration of Omniture SiteCatalyst needs a project purchase.
Click Stream setup is SAP portal specific. Therefore, it includes installation of portal
Analytics reports make sense when you have a projection of an enough time period in your
hand. Therefore, you can make the comparison between past and now to enhance your portal. Analyzing the server log files is easier way to keep track of history, but page tagging vendors should also offer an enough time period that satisfy your historical data comparison expectation.
Google doesn’t guarantee to keep your data older than 25 months on their server. If you want to keep your reports for longer period, which should be the case for portal analytics, you need to export them locally into one of the available file formats.
Urchin keeps the analytics data in MySQL or PostgreSQL on a machine that you
assigned. Therefore, data storage time frame depends on your system specifications.
Nevertheless, Urchin applies size limitation on each table available in the database for
Webtrends On Demands license determine the data storage time frame of your reports. For the software version, Webtrends On Premises, it depends on your analytics server.
The purchased license determines the data storage frame.
There is no limitation on data storage frame with Click Stream.
It is not always the case that your portal sends correct analytics data to process. There might be various reasons such that portal maintenance period, or an error that you haven’t noticed. So, the common expectation should be that your analytics vendor should offer an option to discard erroneous collected data. As a result, your reports won’t be affected from those erroneous data.
Collected data with GATC are added onto the latest report at Google Analytics, and this process cannot be interrupted in case of any erroneous data collection due to problems on your portal or page tagging. Therefore, your reports will have the erroneous information on them, and Google Analytics doesn’t allow editing the reports to take them to an earlier state.
By providing the raw log files to Urchin, reprocessing can be done. But, it has a
mechanism to avoid already processed data to process again, which might be required
to remove all data resides in Urchin database and reprocess again.
Software version of web trends allows you to backup and restore the analytics data, and this can be done on schedule basis. However, this is not provided solution for edit the collected data and reprocess.
Omniture SiteCatalyst doesn’t offer any data reprocessing option.
Collected analytics data resides in the database that customer provided. Therefore, it is possible to edit the collected data. However, this might require support from the vendor.
You can take the advantage of the insight that comes from individual visitors’ usage attitudes. This might give such valuable information like click path of users on your portal and user activity reports including comparison of each user.
manner and anonymously.
If your selected log file format allows including user name information too, you can get the visiting rates and downloaded bytes of individual users.
the user information via webtrends’ tag parameters. If your portal doesn’t provide user information, you can still use this parameter with the other identifier values (IP address and time stamp) provided by data collection server.
Omniture SiteCatalyst doesn’t provide any individual user related information.
Click Stream provides rich user depended reports. These include duration, number of
pageviews, portal user id, name of the user, activities of roles and groups in the portal,
countries and cities of the users, and if it’s defined, company and their departments
activity information are reported. Portal administrator can decide if the anonymization of the collected data as well. Therefore, user information like name and userid won’t be exposed in the reports.
You might have corporate portal for different departments of your company in your intranet, and even it might be behind a firewall to keep the corporate data safer. In this situation, you cannot track your portal visitors with an on demand analytics vendor; because, they need to send analytics data to the vendor’s data collection servers via Internet.
It is not possible to use Google Analytics on your intranet, which is closed for internet
access or behind a firewall. Because, Google’s tracing code cannot send any data to the
Google’s data collection servers in both situations.
Urchin processes log files to generate reports, and its user interface allows you to
provide log files by browsing or with other 4 different methods i.e. FTP HTTP HTTPS or UNC pathnames. So, you will be able to use it in your intranet as long as you specify the log file’s path.
Webtrends offers the software SmartSource Data Collector (SDC) to forward the visitor data coming from page tags into a server that you dedicate. Its limitation is that it allows you to use Microsoft IIS on windows environment, and with some limitation Apache web server on Linux environment.
Omniture SiteCatalyst is an on-demand analytics vendor; therefore it needs to connect
to Adobe’s data collection servers.
Click Stream doesn’t need internet connection to collect analytics data. Because, it
collects the analytics data into the database that you provided.

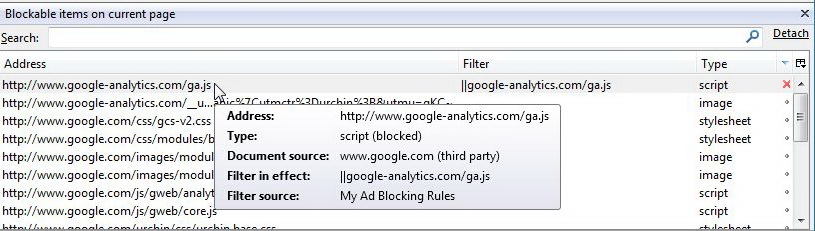

Thanks to the today’s media, web users are more aware and concern about their privacy on
If you are using Urchin with its UTM method, it will collect the user data from the
resulted from Google Analytics are valid in here as well. However, with IP+User-Agent
method, data collection only depends to the available server-side information. This will give limited analytics information, but will avoid the issues that might skew your reports.
Webtrends On Demands and On Premises use page tagging method on the client-side.
Webtrends make it possible to send some of the visitor information via HTTP requests
without using script. This method is implemented on the server-side instead of clientside, therefore implementation depends which server technology you use. Because, you have to supply the necessary information from your server to the Webtrends HTML request as parameters.
Omniture SiteCatalyst uses page tagging method on the client-side. Therefore, portal
user aware them with additional DNS lookups and created cookies.
Click Stream is installed as a software package to the portal. Therefore there won’t be
any additional DNS call, but only to the portal’s server. As it’s mentioned under the title of User Depended Reports, Click Stream can collect detailed information about the portal users. However, anonymization feature of Click Stream does anonymized data reporting and collection.
Page tagging option makes the data collection and processing belongs to the vendors. This
might be preferable if you believe that sending your analytics data to the third parties won’t be a problem, as well as if you are trying to avoid maintaining additional hardware and software for analytics purposes in your company. On the other hand, you may have concerns related with sharing your analytics data with third parties. In this case, you need to prefer a server-side analytics solution by keeping the analytics data in the border of your corporate.

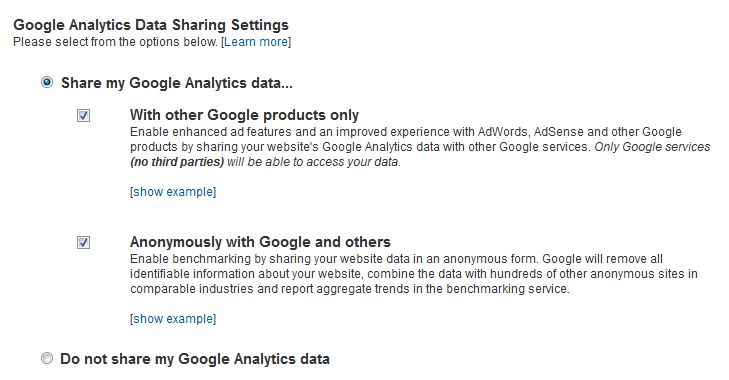

With Google Analytics, data collecting and processing belongs to Google. Besides,
Google might share your analytics information with other Google services and third
parties. This is an optional case that users can decide it the offered options i.e. “with
Google products only” or “Anonymously with Google and others” under analytics
Both data collection methods of Urchin write the analytics data into a database that you created on your machine. The only internet connection that Urchin needs to verify the license that you’ve purchased. As a result, if you have consideration of sharing your analytics data with the vendors, Urchin might be an option for you.
Webtrends On Demand works in the same way that Google Analytics works. So, you
send your analytics data collected from visitors’ browser to the Webtrends data collection servers. On the other hand, Webtrends offers the software SmartSource Data Collector (SDC) to do the data collection work to a server that you have decided.
Omniture SiteCatalyst sends the collected analytics data to Adobe’s data collection
Click Stream collects the analytics data into a server that you have decided. Currently
supported DBMSs are MS SQL, Oracle, IBM DB2, and SAP’s MaxDB. While you
dedicate a separate database for the Click Stream, you can also use your existence
Your analytic vendor might apply some limits to the analytics data that your portal pages send.
There is also a limitation with the “hits” that your web site sends. According to Google
“Each pageview, ecommerce transaction, custom variable or event triggered on your site sends a hit to Google Analytics.” and “…a single view of a web page can send multiple hits to Google Analytics”. If your portal sends “hits” more than 10 million each month, exceeding number of hits might not be processed unless you are a Google AdWords customer. Again, if your web site sends 1 million hits per day, your report will be updated once a day, which results updating of some metrics every two days.
Only limitation that comes with Urchin is the one that it applies to the tables available in it database that it uses. Urchin 7 allows setting this record limit from 10,000 to 10,000,000. Database tables are archived monthly, and if your reports reach this limit before the rotation, your upcoming analytics data will be ignored.
Some of the reporting capabilities of Webtrends On Demand and On Premises are
decided by the license that is purchased. These are which type of report you can use
with your analytics data among their different report offers, the number of service calls to the data collection server during a period of time, and the number of reports that you can export. User interface also allows the user to check the number of server calls collected in an account. Another limitation comes with the tables’ size. These tables are the ones displayed when you viewed reports on your screen, and the tables that those reports fetch data. Both tables have size limit that when you reach it, your analytics data will be lost including performance problems. For On Demand version, you need to request a table size increase from their support, and for the software version you can increase them from user interface.
The license that you purchased determines the reporting capabilities.
There is no feature limitation after purchasing Click Stream’s license, which is defined
according to number of portal users. However, the product support is sold separately.
Should you have any questions or wish for some additional information into gathering statistics (user history, page view details, etc) for your SAP NetWeaver Portal, please contact us at or leave a comment below.
We wish to thank Baris Oztop for his significant amount of time he put into providing such a great resource on this topic.
